RocketMQ5.3.1集成SpringBoot3.4.0就这样简单

itbeien2025年3月3日大约 7 分钟

RocketMQ5.3.1集成SpringBoot3.4.0就这样简单

消息中间件的用途很广，应用解耦、流量削峰、异步处理、数据推送等场景都可以使用RocketMQ进行实现。今天我们主要任务就是基于源码搭建好RocketMQ和控制台环境，然后和SpringBoot3集成再生产消息和消费消息，我们可以结合下图来掌握RocketMQ的常见应用场景

完整代码在文章最后，如果觉得本篇文章对你有用，记得点赞、关注、收藏哦。你的支持是我持续更新的动力!

SpringBoot3专栏软件环境

JDK17.0.12
SpringBoot3.4.0
RocketMQ5.3.1
rocketmq-dashboard-1.0.0
IDEA2024.2.0.2

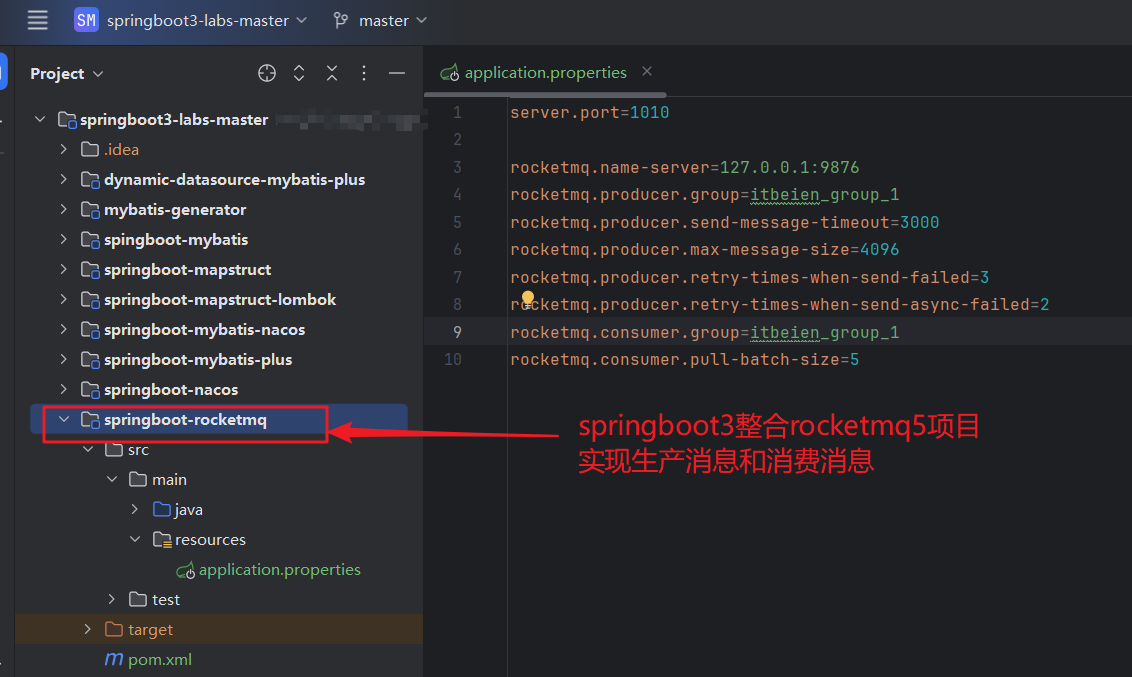

我们先看本篇文章对应的项目结构，请看下图

1 基于源码搭建RocketMQ5.3.1环境

1.1 下载源码打包编译

基于源码的打包编译较慢，如果不想基于源码搭建RocketMQ环境，可以直接下载二进制包

# 源码下载地址
https://github.com/apache/rocketmq/tree/rocketmq-all-5.3.1
# 二进制包下载地址
https://dist.apache.org/repos/dist/release/rocketmq/5.3.1/rocketmq-all-5.3.1-bin-release.zip

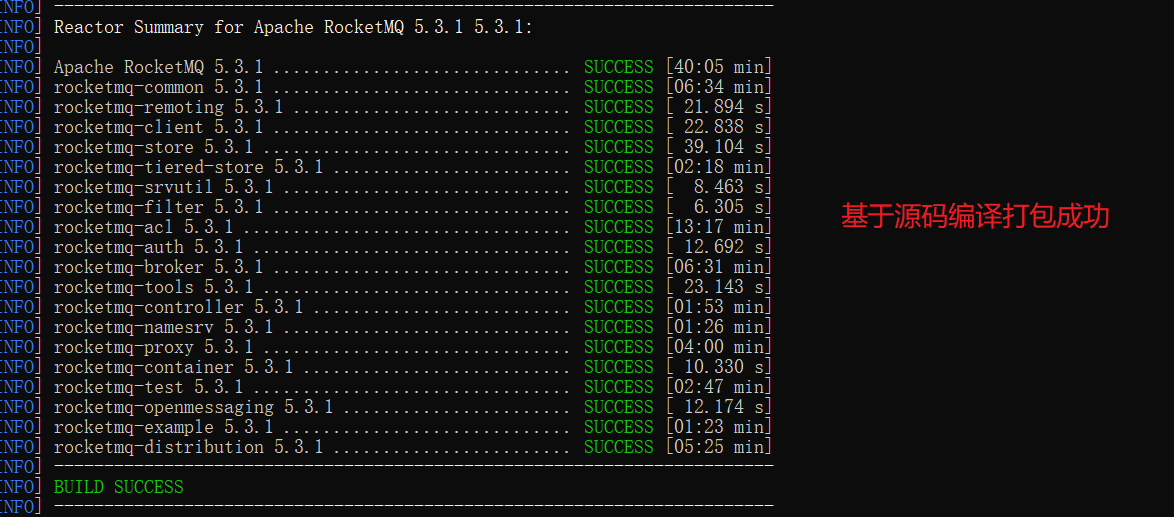

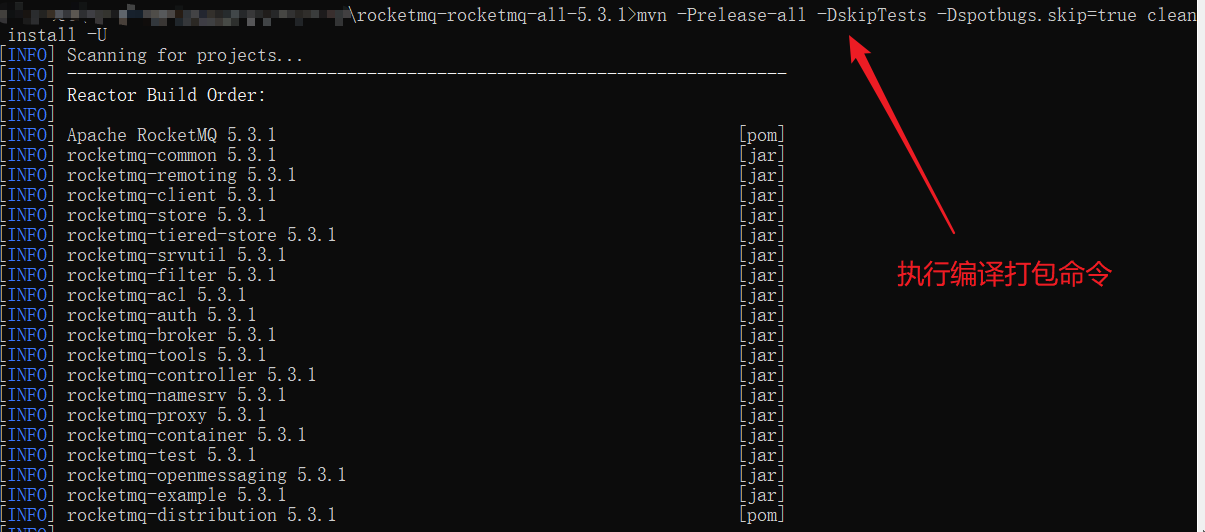

# 编译打包
mvn -Prelease-all -DskipTests -Dspotbugs.skip=true clean install -U

1.2 修改配置

修改默认的JVM内存大小(调整为满足本机内存大小)，生产环境根据服务器配置自行调整

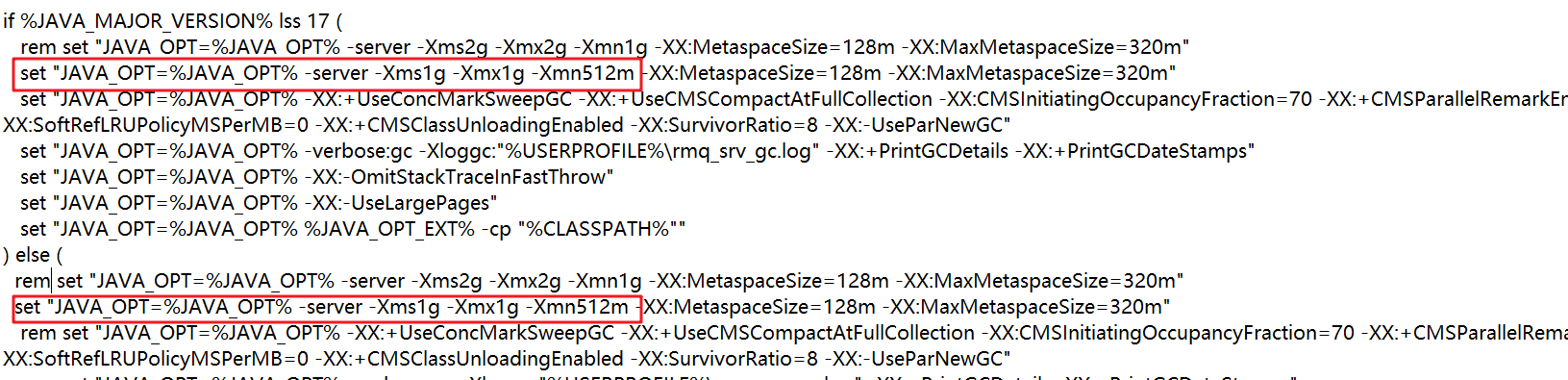

distribution\target\rocketmq-5.3.1\rocketmq-5.3.1\bin\runserver.cmd，linux对应的是runserver.sh

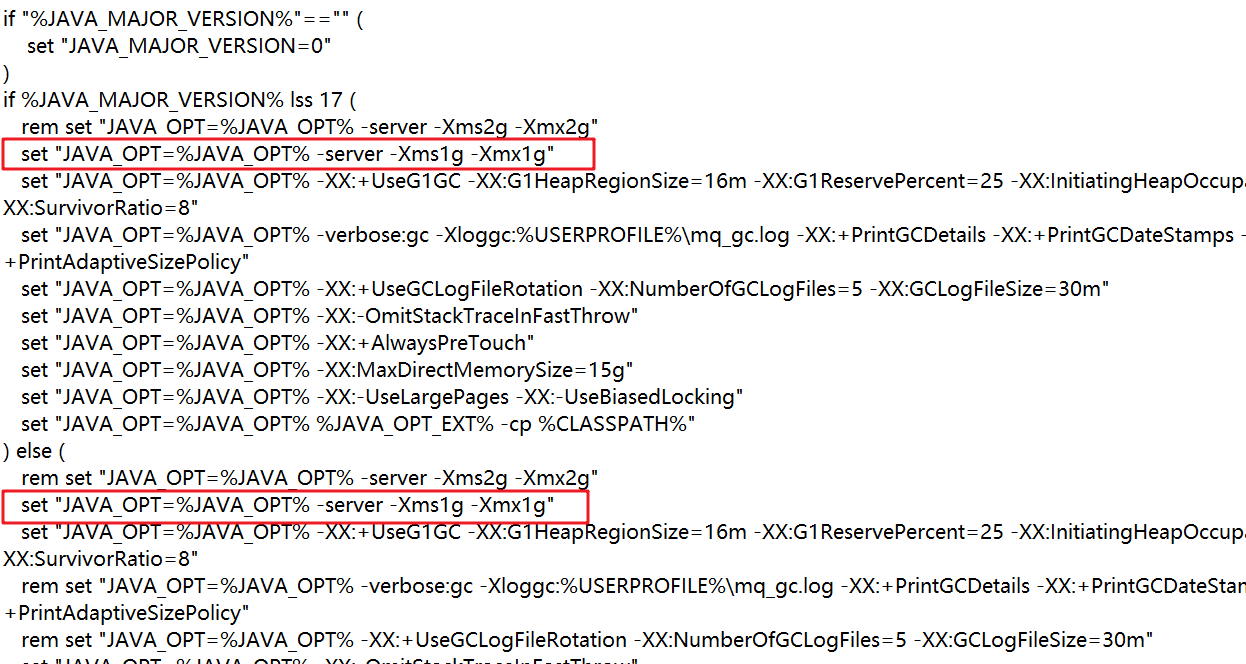

distribution\target\rocketmq-5.3.1\rocketmq-5.3.1\bin\runbroker.cmd，linux对应的是runbroker.sh

1.3 启动RocketMQ Server

distribution\target\rocketmq-5.3.1\rocketmq-5.3.1\bin目录下执行以下命令，windows环境启动需要先配置环境变量ROCKETMQ_HOME=本地磁盘路径\distribution\target\rocketmq-5.3.1\rocketmq-5.3.1

path中添加%ROCKETMQ_HOME%\bin

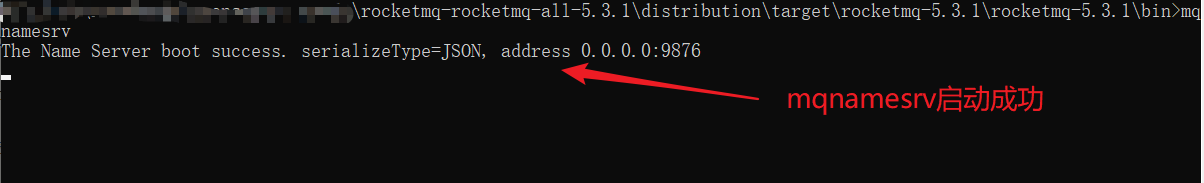

# 1 启动NameServer
mqnamesrv

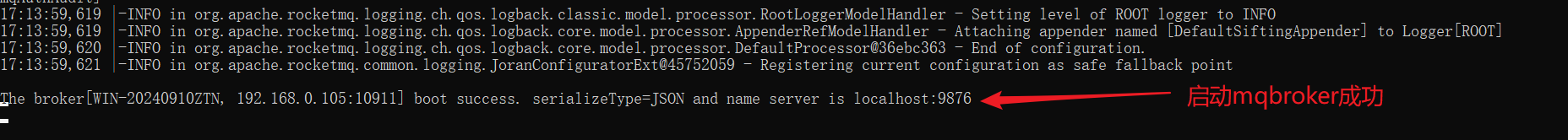

#2 启动Broker
mqbroker -n localhost:9876

#3 关闭服务
mqshutdown namesrv

2 基于源码搭建rocketmq-dashboard1.0

2.1 安装rocketmq-dashboard控制台

# 源码下载地址
https://github.com/apache/rocketmq-dashboard/tree/release-1.0.0
# 在rocketmq-dashboard-release-1.0.0\src\main\resources\application.properties文件中修改属性
rocketmq.config.namesrvAddr=localhost:9876

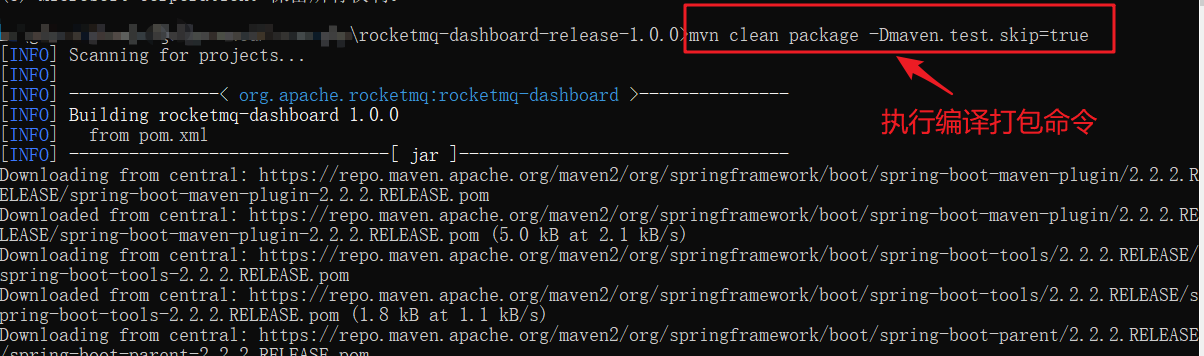

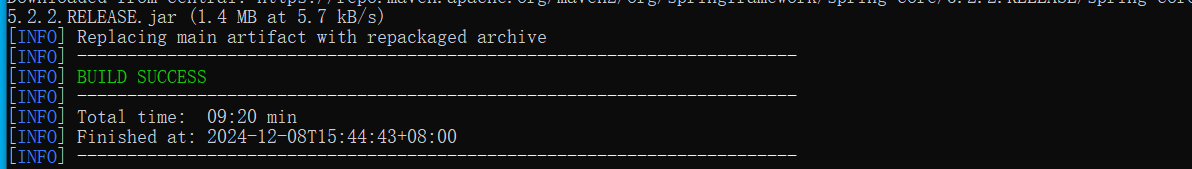

# 编译打包
mvn clean package -Dmaven.test.skip=true

2.2 启动和访问控制台

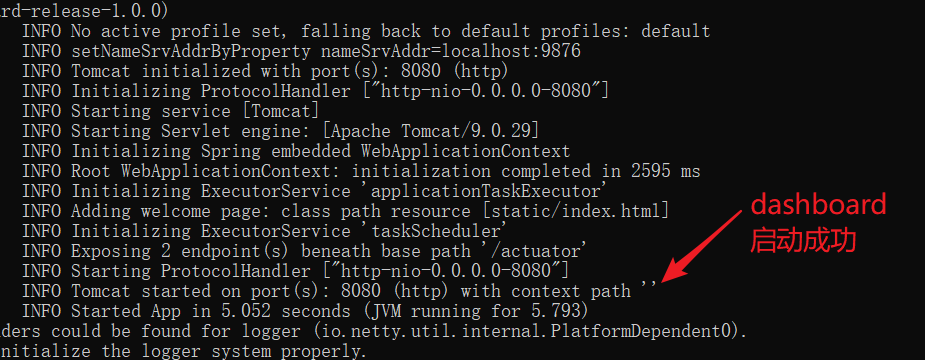

# 启动服务
java -jar target/rocketmq-dashboard-1.0.0.jar

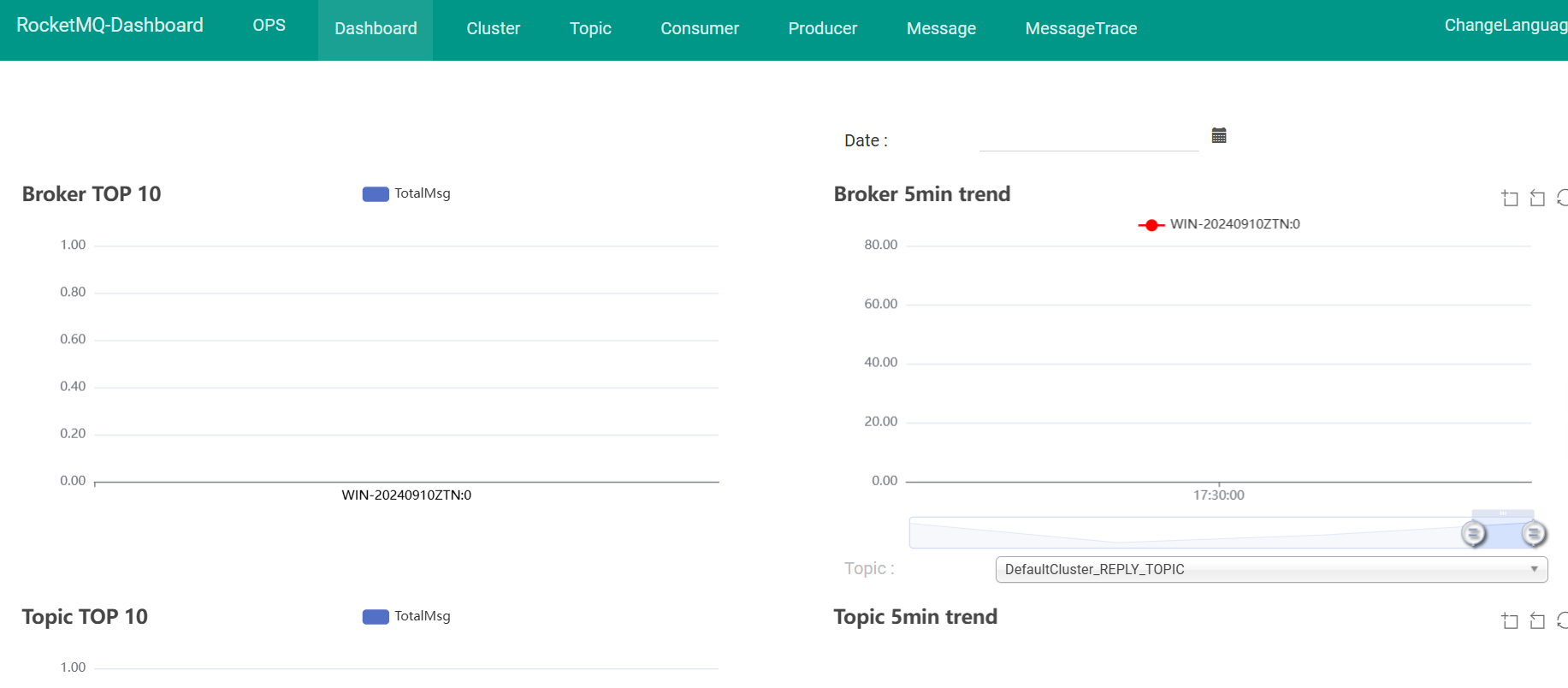

# 访问服务
http://localhost:8080

3 项目搭建

3.1 父工程和子工程依赖管理

父工程pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>cn.itbeien</groupId>
    <artifactId>springboot3-labs-master</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>pom</packaging>

  <!--  <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.4.0</version>
    </parent>-->

    <modules>
        <module>springboot-nacos</module>
        <module>springboot-mybatis-plus</module>
        <module>spingboot-mybatis</module>
        <module>mybatis-generator</module>
        <module>springboot-mybatis-nacos</module>
        <module>dynamic-datasource-mybatis-plus</module>
        <module>springboot-mapstruct</module>
        <module>springboot-mapstruct-lombok</module>
        <module>springboot-rocketmq</module>
    </modules>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <nacos-config-spring-boot-starter-version>0.2.12</nacos-config-spring-boot-starter-version>
        <lombok-version>1.18.34</lombok-version>
        <mybatis-plus-spring-boot3-starter-version>3.5.9</mybatis-plus-spring-boot3-starter-version>
        <mysql-connector-java-version>5.1.49</mysql-connector-java-version>
        <spring-boot-dependencies-version>3.4.0</spring-boot-dependencies-version>
        <mybatis-spring-boot-version>3.0.3</mybatis-spring-boot-version>
        <mapstruct-verrsion>1.5.5.Final</mapstruct-verrsion>
        <mapstruct-processor-version>1.5.5.Final</mapstruct-processor-version>
        <rocketmq-spring-boot-starter-version>2.3.1</rocketmq-spring-boot-starter-version>
        <fastjson-vesion>2.0.53</fastjson-vesion>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot-dependencies-version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.boot</groupId>
                <artifactId>nacos-config-spring-boot-starter</artifactId>
                <version>${nacos-config-spring-boot-starter-version}</version>
            </dependency>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok-version}</version>
            </dependency>
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-spring-boot3-starter</artifactId>
                <version>${mybatis-plus-spring-boot3-starter-version}</version>
            </dependency>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql-connector-java-version}</version>
            </dependency>
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis-spring-boot-version}</version>
            </dependency>
            <dependency>
                <groupId>org.mapstruct</groupId>
                <artifactId>mapstruct</artifactId>
                <version>${mapstruct-verrsion}</version>
            </dependency>
            <dependency>
                <groupId>org.mapstruct</groupId>
                <artifactId>mapstruct-processor</artifactId>
                <version>${mapstruct-processor-version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.rocketmq</groupId>
                <artifactId>rocketmq-spring-boot-starter</artifactId>
                <version>${rocketmq-spring-boot-starter-version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>${fastjson-vesion}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

子工程pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>cn.itbeien</groupId>
        <artifactId>springboot3-labs-master</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>springboot-rocketmq</artifactId>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
    </dependencies>
</project>

3.2 配置文件

server.port=1010

rocketmq.name-server=127.0.0.1:9876
rocketmq.producer.group=itbeien_group_1
rocketmq.producer.send-message-timeout=3000
rocketmq.producer.max-message-size=4096
rocketmq.producer.retry-times-when-send-failed=3
rocketmq.producer.retry-times-when-send-async-failed=2
rocketmq.consumer.group=itbeien_group_1
rocketmq.consumer.pull-batch-size=5

3.3 代码实现

3.3.1 生产者和消费者

package cn.itbeien.rocketmq.service;

import cn.itbeien.rocketmq.vo.MessageVO;
import com.alibaba.fastjson.JSONObject;
import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.producer.DefaultMQProducer;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.common.message.Message;
import org.apache.rocketmq.spring.core.RocketMQTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;


/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * Copyright© 2024 itbeien
 */
@Service
@Slf4j
public class ProducerService
{
    @Autowired
    private RocketMQTemplate rocketMqTemplate;

    @Autowired
    private DefaultMQProducer defaultMqProducer ;
    public String sendMsg1 (){
        try {
            // 构建消息主体
            String msgBody = JSONObject.toJSONString(new MessageVO(1,"itbeien_mq_msg"));
            // 发送消息
            rocketMqTemplate.convertAndSend("itbeien-mq-topic",msgBody);
        } catch (Exception e) {
           log.error("发送消息异常:{}",e);
        }
        return "success" ;
    }



    public String sendMsg2 (){
        try {
            // 构建消息主体
            String msgBody = JSONObject.toJSONString(new MessageVO(1,"itbeien_mq_msg"));
            // 构建消息对象
            Message message = new Message();
            message.setTopic("itbeien-mq-topic");
            message.setTags("itbeien-mq-tag");
            message.setKeys("itbeien-mq-key");
            message.setBody(msgBody.getBytes());
            // 发送消息，打印日志
            SendResult sendResult = defaultMqProducer.send(message);
            log.info("msgId:{},sendStatus:{}",sendResult.getMsgId(),sendResult.getSendStatus());
        } catch (Exception e) {
            log.error("发送消息异常:{}",e);
        }
        return "success" ;
    }


}

package cn.itbeien.rocketmq.service;

import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.spring.annotation.RocketMQMessageListener;
import org.apache.rocketmq.spring.core.RocketMQListener;
import org.springframework.stereotype.Service;


/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * Copyright© 2024 itbeien
 */
@Service
@RocketMQMessageListener(consumerGroup = "itbeien_group_1",topic = "itbeien-mq-topic")
@Slf4j
public class ConsumerService implements RocketMQListener<String> {

    @Override
    public void onMessage(String message) {
        log.info("message：{} ",message);
    }
}

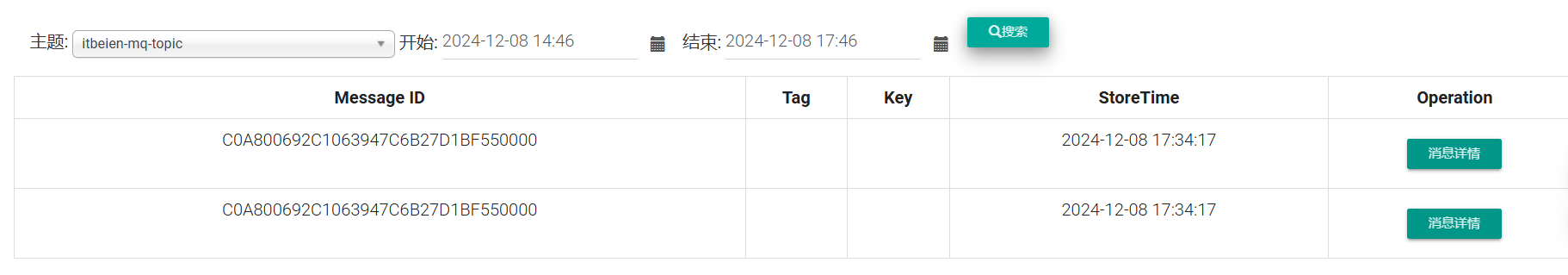

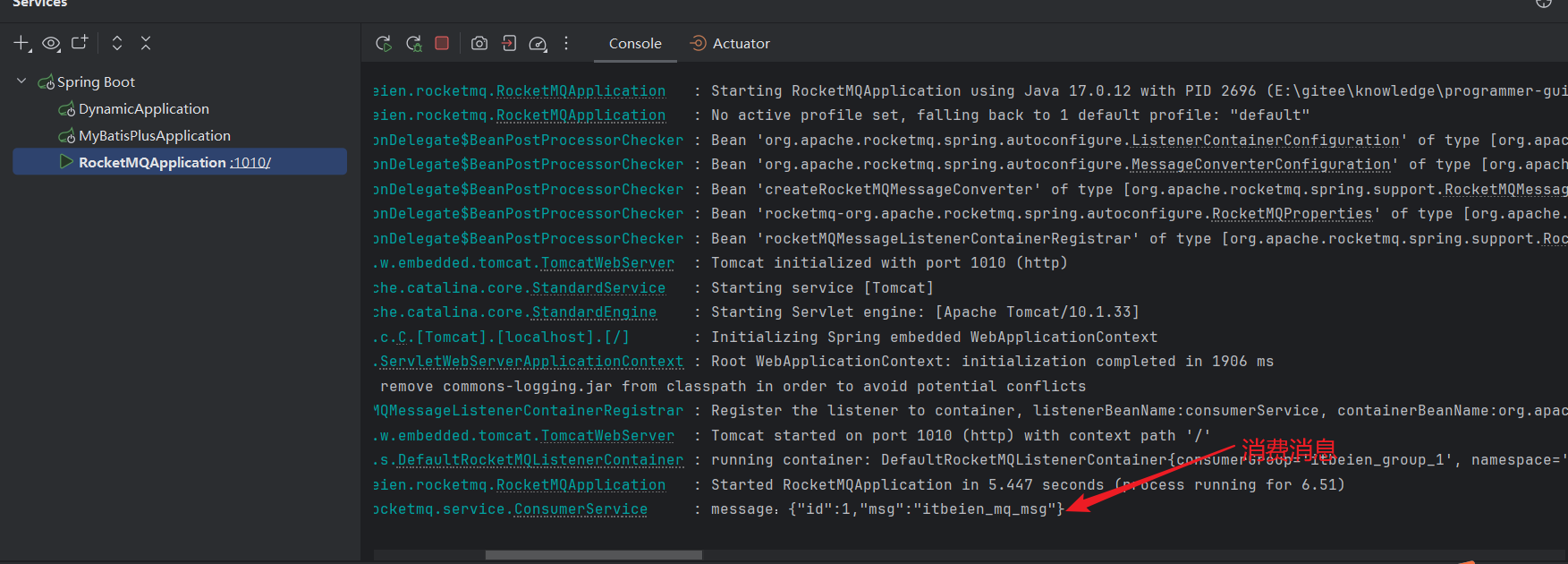

3.4 代码测试

package cn.itbeien.rocketmq.test;

import cn.itbeien.rocketmq.service.ProducerService;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * Copyright© 2024 itbeien
 */
@SpringBootTest
public class RocketMQApplication {
    @Autowired
    private ProducerService producerService;
    /**
     * 生产消息
     */
    @Test
    public void sendMsg(){
        producerService.sendMsg1();
    }
}
